Electrical Power & Substation Solutions for the Mining Industry

Mining operations require continuous electrical power supply from mine substations and transformers to crushers, conveyors, pumps and processing equipment, every part of the operation needs stable and dependable power. Interruption in the power supply results in direct and indirect losses commercial losses. Poor power quality and poor power factor also results in the increase in the electricity cost and reduces the margins.

CTR offers electrical solutions for power quality, transformer protection, voltage regulation and substation automation. Our products are designed to help industrial power systems. Also provide more reliability, improve equipment performance and reduce avoidable downtime.

ENQUIRE NOW

Electrical Challenges in the Mining Industry

Mining and mineral-processing facilities often operate large electrical loads and equipment that overburdens additional demands on the power system.

Some common electrical challenges include:

  • Poor power factor increases energy cost
  • Harmonic distortion
    Voltage fluctuations
  • High reactive power demand
  • Transformer faults and fire risks
  • Electrical equipment overheating
  • Unplanned downtime
  • Need for continuous monitoring of substations

CTR offers products and services that address several of these power-system challenges. Its Power Quality range includes power factor correction systems, harmonic filters, reactive power compensators and capacitors.

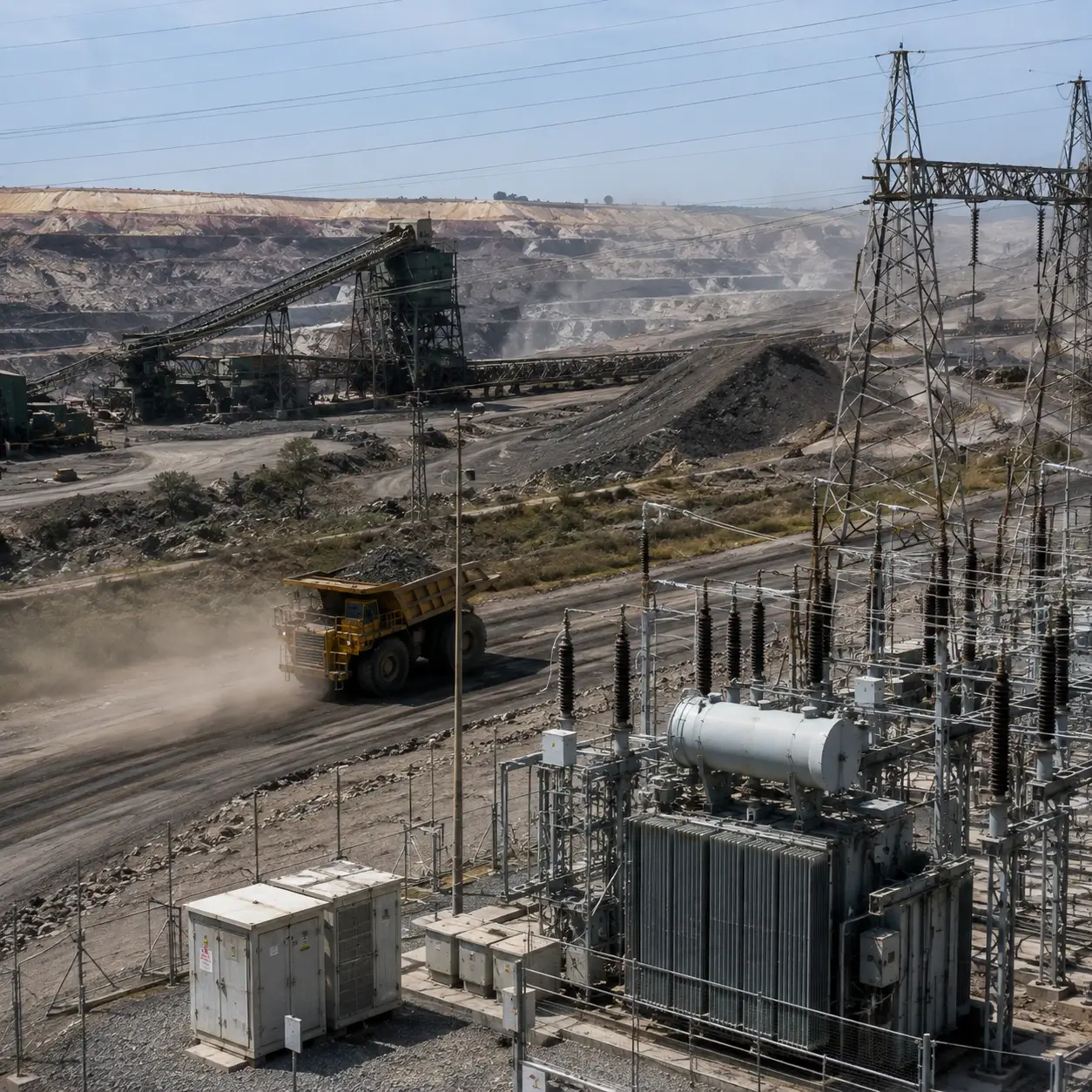

Electrical Challenge in Mining

CTR Solutions for Mining Applications

CTR provides a range of electrical products that can be considered for mining plants, mineral-processing facilities and other heavy industrial applications.

Transformer Fire & Explosion Protection

Transformers are an important part of a mining power system. A transformer fault can result in fire, equipment damage and an unexpected shutdown. CTR’s Nitrogen-based Explosion Prevention and Fire Extinguishing System (NIFPS) is designed for oil-filled power transformers and reactors. The system detects conditions associated with transformer faults and automatically activates through protection relay logic and pressure-sensing mechanisms.

Nitrogen Injection Fire Protection System
  • Mine substations
  • Mineral-processing plants
  • Power transformers
  • Furnace and rectifier transformers
  • Industrial substations

Explore: NIFPS / Transformer Explosion Prevention & Fire Extinguishing System.

Power Factor Correction An Ultimate solution for Mining

CTR’s VAR LimiterDynamic Reactive Power Compensator (DRPC) is designed for dynamic and imbalanced loads with frequent switching or cyclic operation. Our system can inject the required leading or lagging reactive power in less than 40 milliseconds and directly connected from low voltage to High Voltage feeders 33 KV.

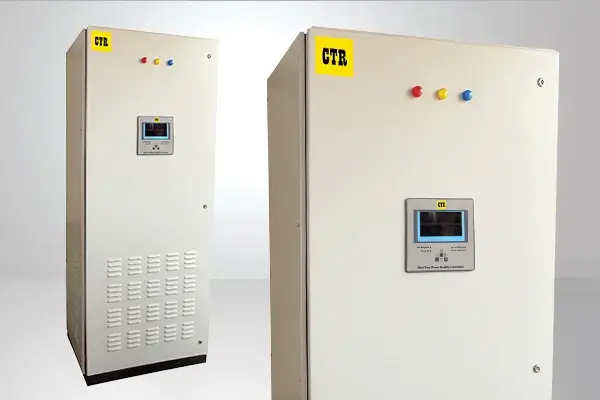

Reactive Power Compensator
  • Direct Coupled at LV, MV, HV – 33 KV Feeders without Integration Transformers. Transformers
  • Maintains a consistently power factor above 0.996++ at the HT metering point by matching dynamic reactive-power demand
  • Reduces unnecessary kVA demand and reactive-power penalties
  • Supports voltage stability during rapid load variations from crushersand conveyors
  • Manages cyclic and fluctuating mining loads
  • Improves transformer and cable capacity utilization
Explore: Power Factor Correction

Harmonic Mitigation Products from CTR

Mining and mineral-processing facilities often use large motors, variable frequency drives (VFDs), rectifiers, and other power-electronic equipment that can introduce harmonic distortion into the electrical system. Excessive harmonics can increase losses, cause overheating in transformers and cables, affect sensitive equipment, and reduce overall power-system efficiency.

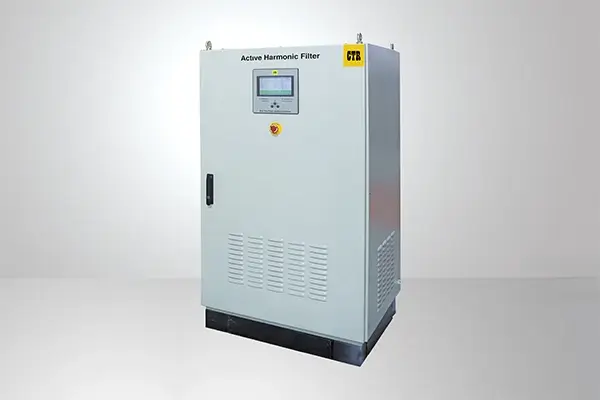

Harmonic Programmable Filter
  • Hybrid Harmonic Reactor Filters
  • Active Harmonic Programmable Filters
  • Medium- and High-Voltage Harmonic Filter Reactors
  • Low-Voltage Harmonic Filter Reactors

Explore: Active Harmonic Programmable Filter.

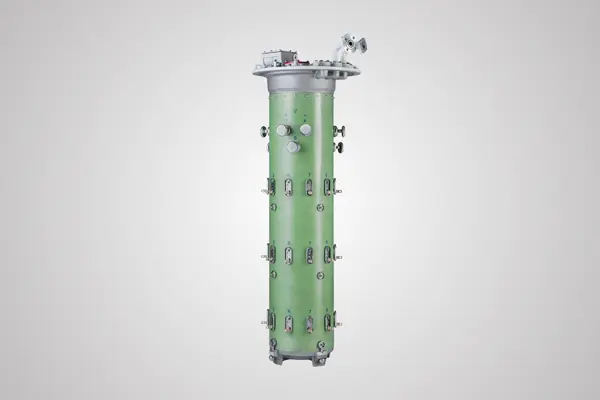

Onload Tap Changer for Mining Transformers

Maintaining the correct voltage is important for the reliable operation of electrical equipment. CTR manufactures Onload Tap changers (OLTCs) for voltage regulation of power, distribution, furnace and rectifier transformers. CTR states that its OLTC range covers transformers up to 765 kV. These solutions can be considered for transformers used in mining and other heavy industrial power systems.

  • Tap changer Control and Health Monitoring System
  • Remote Tap changer Control Cubicle
  • OLTC Analyser
  • Different types of Onload Tap changers
Explore: Onload Tapchanger

Transformer Protection and Monitoring

Mining facilities depend on transformers to distribute and regulate electrical power. Protecting these assets can help reduce the impact of electrical faults.

Transformer Conservator Isolation Valve
  • Transformer Explosion Prevention and Fire Extinguishing System
  • Transformer Conservator Isolation Valve
  • Oil Surge Relay
  • Maintenance Free Breather
  • Tap changer oil Filter machine
Explore: Transformer Accessories.

Substation Automation for Mining

CTR’s Substation Automation System (SAS) is based on a client-server architecture for monitoring, control and automation of modern power substations. It supports different network topologies and communication protocols, including IEC 61850.

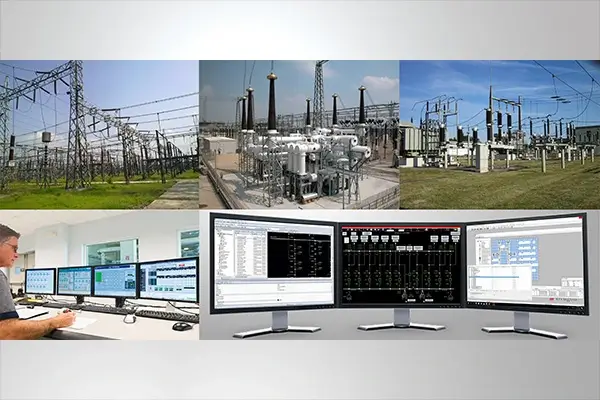

Substation Automation
  • Local and remote configuration
  • Network connectivity monitoring
  • Data exchange and storage
  • Automatic main and redundant server switching

Explore: Substation Automation System

Why Choose CTR for Mining Electrical Solutions?

CTR brings together products and services covering several areas of electrical power systems.

Wide Product Range

We offer solutions covering OLTCs, power quality, substation automation, transformer protection, transformer accessories and fire-safety systems.

Engineering & R&D

We have a dedicated R&D centre and a high-voltage test facility for developing and testing electrical engineering products. Its facility includes testing for OLTCs up to 765 kV and transformer explosion-prevention and fire-extinguishing systems.

Power Quality Expertise

We provide products and services for power-factor correction, harmonic mitigation, reactive-power compensation and power-quality analysis.

Substation Solutions

We provide substation automation, numerical relays, digital substation devices and control and relay panels.

Transformer Protection

Our transformer fire and explosion protection systems are designed for oil-filled transformers and reactors and are listed for applications including the Coal/Mineral/Steel sector.

Integrated Electrical Solutions

CTR brings together solutions for power quality, voltage regulation, transformer protection, monitoring and substation automation under one portfolio.

Looking for Transformer Protection, Voltage Regulation and Substation Automation for Mining?

Mining operations need reliable electrical systems to keep critical equipment running safely and efficiently. From transformer protection and voltage regulation to power quality and substation automation, the right solutions can help reduce electrical risks, improve system performance and minimize unplanned downtime.

CTR offers a comprehensive range of electrical solutions for mining and mineral-processing applications. Contact our team to discuss your project requirements and find the right solution for your power system. Learn how industrial slat chain conveyors support efficient bulk material and coal handling in India.

Mining Industry Enquiry Form

Frequently Asked Questions

Mining electrical systems can require solutions for power quality, voltage regulation, transformer protection, substation automation and electrical safety. CTR provides products in these areas.

NIFPS stands for Nitrogen-based Explosion Prevention and Fire Extinguishing System. CTR’s NIFPS is designed for oil-filled transformers and reactors and is intended to detect and suppress transformer fire and explosion conditions.

Harmonics can affect the performance of an electrical system and connected equipment. A power-quality study can help identify harmonic problems and determine whether a harmonic filter is appropriate.

NIFPS stands for Nitrogen-based Explosion Prevention and Fire Extinguishing System. CTR’s NIFPS is designed for oil-filled transformers and reactors and is intended to detect and suppress transformer fire and explosion conditions.

Yes. CTR provides Energy Audit and Power Quality Analysis, including analysis of issues such as sags, spikes and harmonics, as well as capacitor-panel health checks and thermography.

An Onload Tapchanger is used to regulate transformer output voltage while the transformer remains in operation. CTR manufactures OLTCs for power, distribution, furnace and rectifier transformers.
