DIGITAL SUBSTATION DEVICES

OVERVIEW

Digital Substation technology based on IEC61850-9-2 considerably raising function operational reliability and Grid stability also reducing installation time and cost due to reduction in cables, civil work and secondary equipment installation and maintenance.

  • Primary process variables such as Current and Voltage from CT, VT/PT are converted to digital format and multiplexed into fibre optical based links which is connected to several IEDs through Fibre optic cable, on Process bus IEC61850-9-2LE protocol.
  • Process bus enabled Merging units and Numerical protection relays supports HSR/PRP communication protocol as per IEC 62439, integrated with PTP for Time synchronization
  • At Bay level, all required Numerical protection relays are Process bus enabled.
  • Protection device ensures auto switchover during failure of Merging unit to healthy merging unit;
  • 100% operability in case of failure of device or connection.
  • Drastic reduction towards cost of copper cable and civil work.

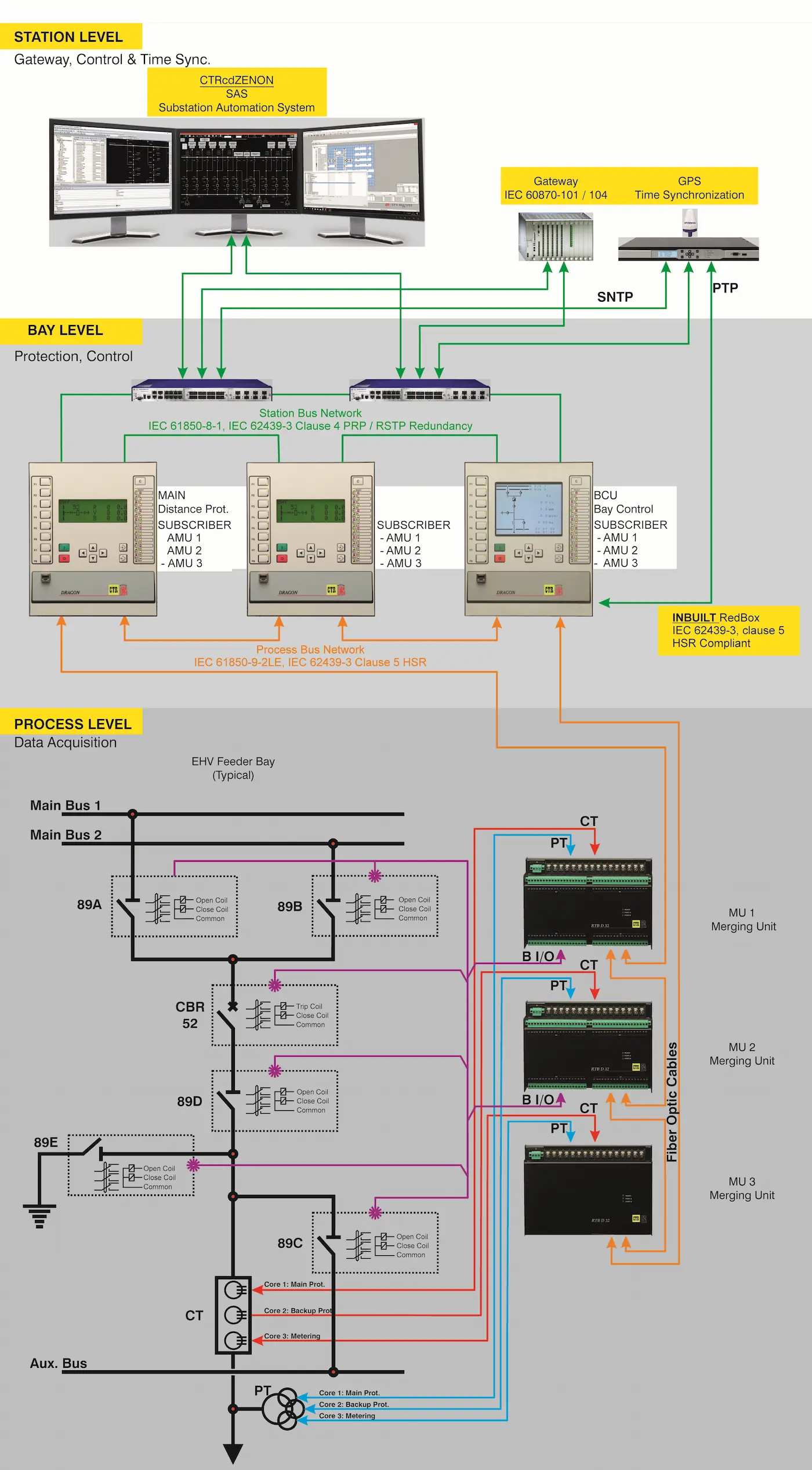

HOW IT WORKS?
