HIGH VOLTAGE TEST LAB

OVERVIEW

Setup with the core objective to design and develop\upgrade technology and reliability of substation equipment through Diagnostic and Life extension techniques. State of the art High Voltage test facility for Onload Tapchanger upto 765 kv and other electrical engineering equipment.

The Centre is also involved in Research and Development of Digital substation automation systems, Power Quality improvement products, Power Electronic Capacitors, Transformer explosion prevention and fire safety, Dielectric fluid, different material.

Test facility of the Research and Development centre are accredited by Ministry of Science and Technology, Department of Scientific and Industrial Research (DSIR), Government of India since 2012; National Accreditation Board for Testing and Calibration Laboratories (NABL) since 2015.



ACCREDITION

Test facility of the Research and Development centre are accredited by Ministry of Science and Technology, Department of Scientific and Industrial Research (DSIR), Government of India since 2012; National Accreditation Board for Testing and Calibration Laboratories (NABL) since 2015.

ACHIEVEMENTS

  • Testing of vacuum OLTC of 245 kv in presence of KEMA.
  • Testing of M type OLTC for 765 kv class application.
  • OCTC die electric test for 245 kv class.
  • PGCIL witnessed testing of S type OLTC for 400 kv class application.
  • RDSO witnessed testing of Scott connected OCTC and approved.
  • Testing of OLTC filled with Easter oil upto 400 kv class.
  • Testing of CTR make vacuum CIVT dry type OLTC at 22 and 33 kv.
Major Technical Achievements
0 +

TYPE TESTS

Onload Tapchangers

ONLOAD TAPCHANGERS

UPTO 765 KV AND DRIVE MECHANISMS FOR TAP CHANGERS

  • NABL accredited
  • Partial discharge test
  • Short Circuit current
  • Temperature Rise
  • Tan Delta
  • Switching Tests includes Service duty and Breaking capacity test
  • Transition impedance test
  • Pressure tests
  • Vacuum tests
  • Tightness tests
  • Lightning Impulse test
  • Chopped wave lightning Impulse
  • Switching Impulse
  • Applied Voltage (HV)
  • Auxiliary Circuit Insultation
  • Mechanical Endurance
  • Mechanical load test of Drive Mechanism
  • Sequence test
  • Mechanical test of drive mechanism
  • Contact Resistance
  • Overrun test of motor drive

TRANSFORMER EXPLOSION PREVENTION FIRE EXTINGUISHING SYSTEM

  • NABL accredited
  • Leakage test
  • Flow rate test for
  • Transformer
  • Conservation Isolation valve
  • Auxiliary Circuit
  • Insulation test
  • System Activation Test
  • System Response test
  • Auxiliary Supply Voltage test
Transformer Explosion Prevention Fire Extinguishing System
Electronic Products

ELECTRONIC PRODUCTS

  • BIS accredited
  • Dielectric tests
  • Voltage proof tests
  • Climatic tests
  • Endurance tests
  • Capacitance test
  • Dielectric loss measurement tests

POWER ELECTRONIC AND POWER FACTOR CORRECTION CAPACITORS

  • Thermal stability test
  • Self-Healing test
  • Discharge test
  • Destruction test
  • Aging test
  • Over pressure test
  • Dielectric test between terminal
  • Dielectric test between terminal and Container
  • Charge/Discharge test
  • Insulation Resistance
  • Capacitance measurement at rated Voltage
  • Tan Delta
Power Electronic and Power Factor Correction Capacitors
Insulated Bushing From 1KV TO 36KV

INSULATED BUSHING FROM
1KV TO 36KV

  • NABL accredited
  • Dry Power Frequency test
  • Dry Lightening Impulse test
  • Temperature rise test
  • Verification of dimensions
  • Partial Discharge test
  • Tightness test

TEST LAB SERVICES

Test Lab activities are mainly confined to the products of the company. The facility is available to others, on request, for testing Transformers, Bushings, Circuit Breakers, and Radiator Heat Dissipation.

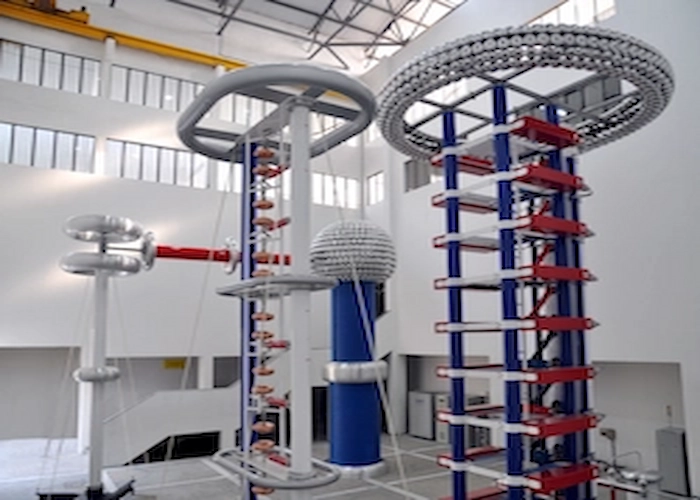

High-voltage Lab
